Configure data pipelines

Learn how to configure ingest pipelines for data transformation

RDI implements change data capture (CDC) with pipelines. (See the architecture overview for an introduction to pipelines.)

Overview

An RDI pipeline captures change data records from the source database, and transforms them into Redis data structures. It writes each of these new structures to a Redis target database under its own key.

By default, RDI transforms the source data into hashes or JSON objects for the target with a standard data mapping and a standard format for the key. However, you can also provide your own custom transformation jobs for each source table, using your own data mapping and key pattern. You specify these jobs declaratively with YAML configuration files that require no coding.

The data tranformation involves two separate stages. First, the data ingested by Debezium is automatically transformed to a JSON format. Then, this JSON data gets passed on to your custom transformation for further processing.

You can provide a job file for each source table you want to transform, but you can also add a default job for any tables that don't have their own. You must specify the full name of the source table in the job file (or the special name "*" in the default job) and you can also include filtering logic to skip data that matches a particular condition. As part of the transformation, you can specify whether you want to store the data in Redis as JSON objects, hashes, sets, streams, sorted sets, or strings.

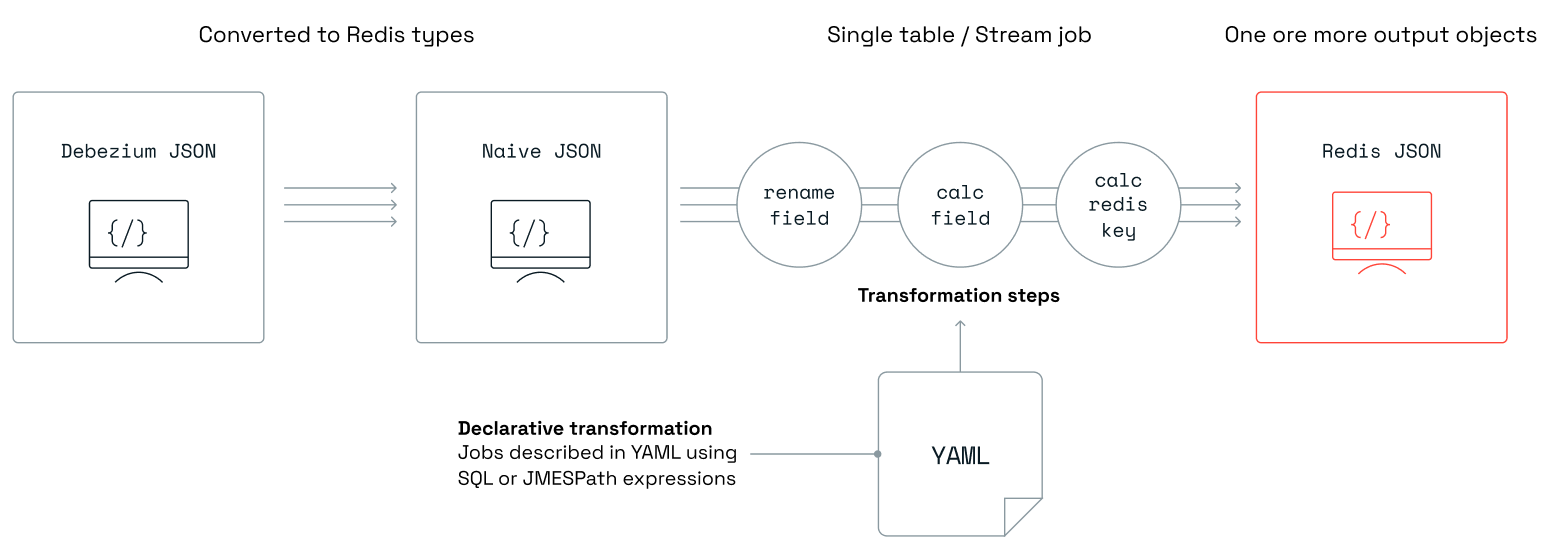

The diagram below shows the flow of data through the pipeline:

Pipeline configuration

RDI uses a set of YAML files to configure each pipeline. The following diagram shows the folder structure of the configuration:

The main configuration for the pipeline is in the config.yaml file. This specifies the connection details for the source database (such as host, username, and password) and also the queries that RDI will use to extract the required data. You should place job configurations in the Jobs folder if you want to specify your own data transformations.

The sections below describe the two types of configuration file in more detail.

The config.yaml file

Here is an example of a config.yaml file. Note that the values of the form "${name}" refer to environment variables that are set elsewhere. In particular, you should normally use environment variables as shown to set the source username and password rather than storing them in plain text in this file (see Set secrets below for more information).

sources:
  mysql:
    type: cdc
    logging:
      level: info
    connection:
      type: mysql
      host: ${RDI_REDIS_HOST}
      port: 13000
      database: redislabscdc
      user: ${SOURCE_DB_USERNAME}
      password: ${SOURCE_DB_PASSWORD}
    tables:
          emp:
            snapshot_sql: "SELECT * from redislabscdc.emp WHERE empno < 1000"
            columns:
              - empno
              - fname
              - lname
            keys:
              - empno
  # Advanced collector properties (optional):
  # advanced:
  # Sink collector properties - see the full list at https://debezium.io/documentation/reference/stable/operations/debezium-server.html#_redis_stream
  #   sink:
  #     redis.memory.limit.mb: 100
  #     redis.memory.threshold.percentage: 85
  # Source specific properties - see the full list at https://debezium.io/documentation/reference/stable/connectors/
  #   source:
  #     snapshot.mode: initial
  # Quarkus framework properties - see the full list at https://quarkus.io/guides/all-config
  #   quarkus:
  #     banner.enabled: "false"
targets:
  my-redis:
    connection:
      type: redis
      host: localhost
      port: 12000
# The names of the following files should match the ones you used
# when setting the TLS/mTLS secrets. Set only `cacert` if you are using
# TLS, but set all three if you are using mTLS:
#     key: /etc/certificates/target_db/redis.key
#     cert: /etc/certificates/target_db/redis.crt
#     cacert: /etc/certificates/target_db/ca.crt

The main sections of the file configure sources and targets.

Sources

The sources section has a subsection for the source that you need to configure. The source section starts with a unique name to identify the source (in the example we have a source called mysql but you can choose any name you like). The example configuration contains the following data:

  • type: The type of collector to use for the pipeline. Currently, the only type we support is cdc.
  • connection: The connection details for the source database: hostname, port, schema/ db name, database credentials and TLS/ mTLS secrets.
  • tables: The dataset you want to collect from the source. This subsection specifies:
    • snapshot_sql: A query that selects the tables to include in the dataset (the default is to include all tables if you don't specify a query here).
    • columns: A list of the columns you are interested in (the default is to include all columns if you don't supply a list)
    • keys: A list of primary keys, one for each table. If the table doesn't have a column with a PRIMARY KEY or UNIQUE constraint then you can supply a unique composite key.
  • advanced: These optional properties configure other Debezium-specific features. The available sub-sections are:
    • sink: All advanced properties for writing to RDI (TLS, memory threshold, etc). See the Debezium Redis stream properties page for the full set of available properties.
    • source: All advanced connector properties (for example, RAC nodes). See Database-specific connection properties below and also see the Debezium Connectors pages for more information about the properties available for each database type.
    • quarkus: All advanced properties for Debezium server, such as the log level. See the Quarkus Configuration options docs for the full set of available properties.

Targets

Use this section to provide the connection details for the target Redis database(s). As with the sources, you should start each target section with a unique name that you are free to choose (here, we have used my-redis as an example). In the connection section, you can supply the type of target database, which will generally be redis along with the host and port of the server. You can also supply connection credentials and TLS/mTLS secrets here if you use them.

Database-specific connection properties

Use the following properties in the sources.advanced.source section of config.yaml for more control over RDI's connection to your database.

MySQL/MariaDB

See the Debezium SSL mode properties for a full list of properties specific to MySQL/MariaDB.

  • database.ssl.keystore: (Optional) The location of the key store file. Use this for two-way authentication between your client and the MySQL/MariaDB Server.
  • database.ssl.keystore.password: (Optional) The password for the key store file. You only need this if you have also configured database.ssl.keystore.
  • database.ssl.truststore: The location of the trust store file to use for server certificate verification.
  • database.ssl.truststore.password: The password for the trust store file. This is required both to check the integrity of the truststore and to unlock it.

PostgreSQL

See the Debezium connector properties for a full list of properties specific to PostgreSQL.

Oracle

See the Kafka configuration docs for a full list of properties relevant to Oracle configuration. Where a property has a <role> element, you can set the role to be either producer or consumer, as appropriate.

Job files

You can optionally supply one or more job files that specify how you want to transform the captured data before writing it to the target. Each job file contains a YAML configuration that controls the transformation for a particular table from the source database. For ingest pipelines, you can also add a default-job.yaml file to provide a default transformation for tables that don't have a specific job file of their own.

The job files have a structure like the following example. This configures a default job that:

  • Writes the data to a Redis hash
  • Adds a field app_code to the hash with a value of foo
  • Adds a prefix of aws and a suffix of gcp to the key
source:
  table: "*"
  row_format: full
transform:
  - uses: add_field
    with:
      fields:
        - field: after.app_code
          expression: "`foo`"
          language: jmespath
output:
  - uses: redis.write
    with:
      data_type: hash
      key:
        expression: concat(['aws', '#', table, '#', keys(key)[0], '#', values(key)[0], '#gcp'])
        language: jmespath

The main sections of these files are:

  • source: This is a mandatory section that specifies the data items that you want to use. You can add the following properties here:

    • server_name: Logical server name (optional). This corresponds to the debezium.source.topic.prefix property specified in the Debezium Server's application.properties config file.
    • db: Database name (optional)
    • schema: Database schema (optional)
    • table: Database table name. This refers to a table name you supplied in config.yaml. The default job doesn't apply to a specific table, so use "*" in place of the table name for this job only.
    • row_format: Format of the data to be transformed. This can take the values data_only (default) to use only the payload data, or full to use the complete change record. See the transform section below for details of the extra data you can access when you use the full option.
    • case_insensitive: This applies to the server_name, db, schema, and table properties and is set to true by default. Set it to false if you need to use case-sensitive values for these properties.

  • transform: This is an optional section describing the transformation that the pipeline applies to the data before writing it to the target. The uses property specifies a transformation block that will use the parameters supplied in the with section. See the data transformation reference for more details about the supported transformation blocks, and also the JMESPath custom functions reference.

    Note:

    If you set row_format to full under the source settings, you can access extra data from the change record in the transformation:

    • Use the expression key.key to get the generated Redis key as a string.
    • Use before.<FIELD_NAME> to get the value of a field before it was updated in the source database (the field name by itself gives you the value after the update).

  • output: This is a mandatory section to specify the data structure(s) that RDI will write to the target along with the text pattern for the key(s) that will access it. Note that you can map one record to more than one key in Redis or nest a record as a field of a JSON structure (see Data denormalization for more information about nesting). You can add the following properties in the output section:

    • uses: This must have the value redis.write to specify writing to a Redis data structure. You can add more than one block of this type in the same job.
    • with:
      • connection: Connection name as defined in config.yaml (by default, the connection named target is used).
      • data_type: Target data structure when writing data to Redis. The supported types are hash, json, set, sorted_set, stream and string.
      • key: This lets you override the default key for the data structure with custom logic:
        • expression: Expression to generate the key.
        • language: Expression language, which must be jmespath or sql.
      • expire: Positive integer value indicating a number of seconds for the key to expire. If you don't specify this property, the key will never expire.
Note:
In a job file, the transform section is optional, but if you don't specify a transform, you must specify custom key logic in output.with.key. You can include both of these sections if you want both a custom transform and a custom key.

Another example below shows how you can rename the fname field to first_name in the table emp using the rename_field block. It also demonstrates how you can set the key of this record instead of relying on the default logic. (See the Transformation examples section for more examples of job files.)

source:
  server_name: redislabs
  schema: dbo
  table: emp
transform:
  - uses: rename_field
    with:
      from_field: fname
      to_field: first_name
output:
  - uses: redis.write
    with:
      connection: target
      key:
        expression: concat(['emp:fname:',fname,':lname:',lname])
        language: jmespath

See the RDI configuration file reference for full details about the available source, transform, and target configuration options and see also the data transformation reference for details of all the available transformation blocks.

Source preparation

Before using the pipeline you must first prepare your source database to use the Debezium connector for change data capture (CDC). See the architecture overview for more information about CDC. Each database type has a different set of preparation steps. You can find the preparation guides for the databases that RDI supports in the Prepare source databases section.

Set secrets

Before you deploy your pipeline, you must set the authentication secrets for the source and target databases. Each secret has a corresponding property name that you can pass to the redis-di set-secret command to set the property's value. For example, you would use the following command line to set the source database username to myUserName:

redis-di set-secret SOURCE_DB_USERNAME myUserName

The table below shows the property name for each secret. Note that the username and password are required for the source and target, but the other secrets are only relevant to TLS/mTLS connections.

Property name Description
SOURCE_DB_USERNAME Username for the source database
SOURCE_DB_PASSWORD Password for the source database
SOURCE_DB_CACERT (For TLS only) Source database trust certificate
SOURCE_DB_KEY (For mTLS only) Source database private key
SOURCE_DB_CERT (For mTLS only) Source database public key
SOURCE_DB_KEY_PASSWORD (For mTLS only) Source database private key password
TARGET_DB_USERNAME Username for the target database
TARGET_DB_PASSWORD Password for the target database
TARGET_DB_CACERT (For TLS only) Target database trust certificate
TARGET_DB_KEY (For mTLS only) Target database private key
TARGET_DB_CERT (For mTLS only) Target database public key
TARGET_DB_KEY_PASSWORD (For mTLS only) Target database private key password

Deploy a pipeline

If you are hosting RDI on your own VMs, you can use the deploy command to deploy a configuration, including the jobs, once you have created them.

If your RDI CLI is deployed as a pod in a Kubernetes cluster, you should perform the following steps to deploy a pipeline:

  • Create a ConfigMap from the YAML files in your jobs folder:

    kubectl create configmap redis-di-jobs --from-file=jobs/

  • Deploy your jobs:

    kubectl exec -it pod/redis-di-cli -- redis-di deploy
Note:
When you create or modify a ConfigMap, it will be available in the redis-di-cli pod after a short delay. Wait around 30 seconds before running the redis-di deploy command.

You have two options to update the ConfigMap:

  • For smaller changes, you can edit the ConfigMap directly with this command:

    kubectl edit configmap redis-di-jobs

  • For bigger changes, such as adding another job file, edit the files in your local jobs folder and then run this command:

    kubectl create configmap redis-di-jobs --from-file=jobs/ --dry-run=client -o yaml | kubectl apply -f -
Note:
You must run kubectl exec -it pod/redis-di-cli -- redis-di deploy after updating the ConfigMap with either option.

Ingest pipeline lifecycle

Once you have created the configuration for a pipeline, it goes through the following phases:

  1. Deploy - when you deploy the pipeline, RDI first validates it before use. Then, the operator creates and configures the collector and stream processor that will run the pipeline.
  2. Snapshot - The collector starts the pipeline by creating a snapshot of the full dataset. This involves reading all the relevant source data, transforming it and then writing it into the Redis target. You should expect this phase to take minutes or hours to complete if you have a lot of data.
  3. CDC - Once the snapshot is complete, the collector starts listening for updates to the source data. Whenever a change is committed to the source, the collector captures it and adds it to the target through the pipeline. This phase continues indefinitely unless you change the pipeline configuration.
  4. Update - If you update the pipeline configuration, the operator starts applying it to the processor and the collector. Note that the changes only affect newly-captured data unless you reset the pipeline completely. Once RDI has accepted the updates, the pipeline returns to the CDC phase with the new configuration.
  5. Reset - There are circumstances where you might want to rebuild the dataset completely. For example, you might want to apply a new transformation to all the source data or refresh the dataset if RDI is disconnected from the source for a long time. In situations like these, you can reset the pipeline back to the snapshot phase. When this is complete, the pipeline continues with CDC as usual.
